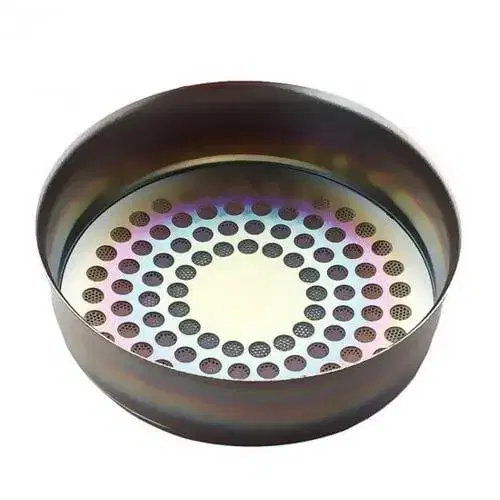

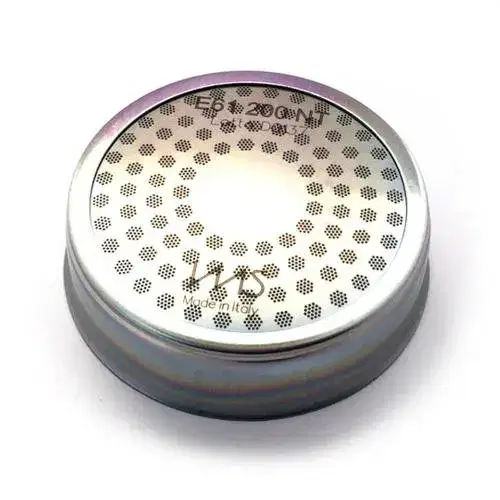

IMS Nano Quartz E61 Precision Dispersion Screen

This is the highest quality precision dispersion screen for the E61 group that IMS produces. The quartz coating improves the water flow, makes the cleaning process of the shower a simple wipe, and increases extraction consistency.

Suitable for all e61 brewing group machines.


In stock

  • Genuine IMS product
  • Made in Italy
  • Non-stick NANOQUARTZ coating
  • Compatible with all E61 style groups, including but not limited to Wega, Faema, Rocket, ECM, Vibiemme, Cuadra, Isomac, BFC, Kees Van Der Westen, Rancilio, La Scala, Expobar, San Remo, Fiorenzato
  • Rim outer diameter: 60 mm
  • Body diameter: 57 mm
  • Outlet area diameter: 49 mm
  • Height: 17 mm
  • Number of holes: 98
  • Hole diameter: 3 mm
  • Membrane: 200 µm (integrated)
  • Hole distribution/arrangement: circular
  • Material: AISI 304 Stainless steel
  • IMS product code - E61200NT
