Rancilio Classe 5 USB High Cup

Rancilio’s robust and powerful mid-range Classe 5 is a true workhorse, built to take a beating and keep on going.

Industrially inspired functional minimalism and contemporary aesthetics come together to make one impressive espresso machine.

Rancilio has been in the espresso machine business since being founded in Parabiago, Italy in 1927.

Espresso Ninja is proud to be the official Rancilio sales and service agent.

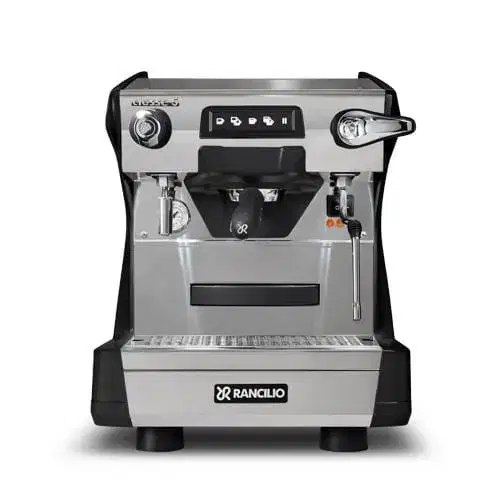

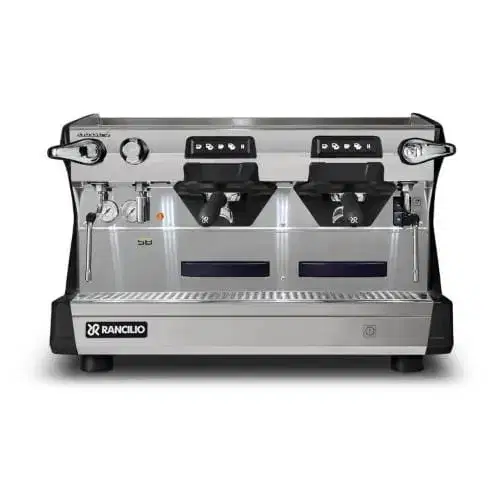

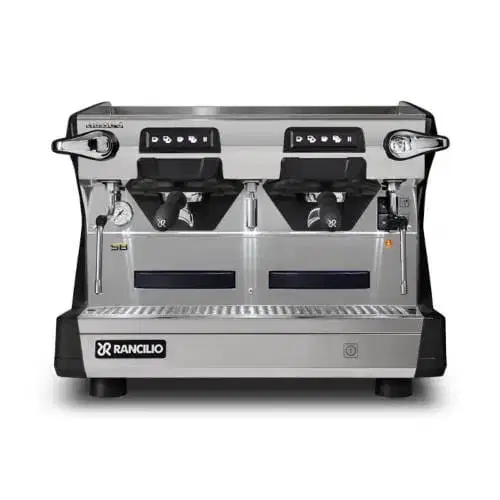

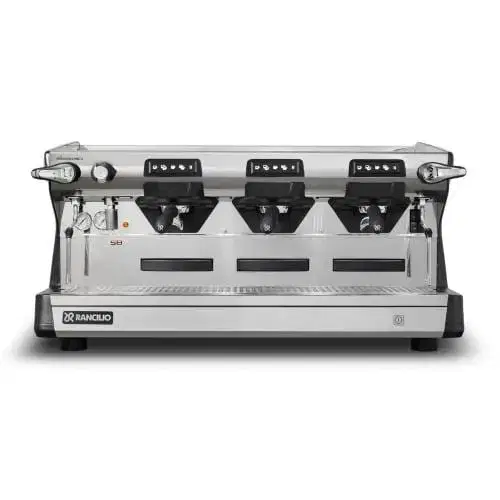

Available in four sizes – One group, compact two group, two group, and three group.

  • Fits tall cups up to 145mm in height, with a retractable tray for using shorter cups
  • Steady Brew patented heat exchanger technology for outstanding temperature consistency
  • Single hot water tap with manual operation
  • Ergonomic filter holder for comfortable all-day operation
  • Easy-to-use steam valves with quarter-turn steam tap features two positions: purge (down) or fully open (up)
  • Hydro hub – integrated manifold for precise water delivery and distribution
  • Multifunction on-board computer and USB port for simple programming and data transfer
  • Independent water pump and steam pressure control gauges
  • Built-in volumetric rotary vane water pump for simple and safe installation
  • Steam boiler pressure control with mechanical pressure stat
  • An automated cleaning programme simplifies your daily clean
  • Brushed stainless steel front and rear panels
  • Anthracite black ABS nylon side panels
  • Adjustable feet with optional extensions
  • Soft-touch keypads with 4 programmable drink dosing presets for easy espresso preparation
  • White LED backlights easy to read keypad buttons
  • Solid quality and reliability
  • Automatic dose control. Shots can be set to stop automatically after a set volume
  • Wholesale customer? Reach out for wholesale pricing!

Boiler sizes and power requirements:

Single group - 4 litre steam boiler - 1700w - 10 amp supply required (must be plumbed in, no water tank)
Two group compact - 5 litre steam boiler - 3000w - 15 amp supply required
Two group - 11 litre steam boiler - 3750w - 20 amp supply required
Three group - 16 litre steam boiler - 6000w - 32 amp supply required

Dimensions and weight:

  • One group - W: 410mm D: 540mm H: 520mm - 35kg
  • Two group compact - W: 610mm D: 540mm H: 520mm - 50kg
  • Two group - W: 770mm D: 540mm H: 520mm - 56kg
  • Three group - W: 1010mm D: 540mm H: 520mm - 68kg

Plumbing into mains will require an additional water filtration kit which is site-specific. Contact us to enquire!

Additional information

Choose your size

One group, Two group compact, Two group, Three group
